ホーム > 製品 > インクジェットプロータープリンター > Automatic Grade High Precision Inkjet Fabric Cutting Plotter for Manufacturing Plant

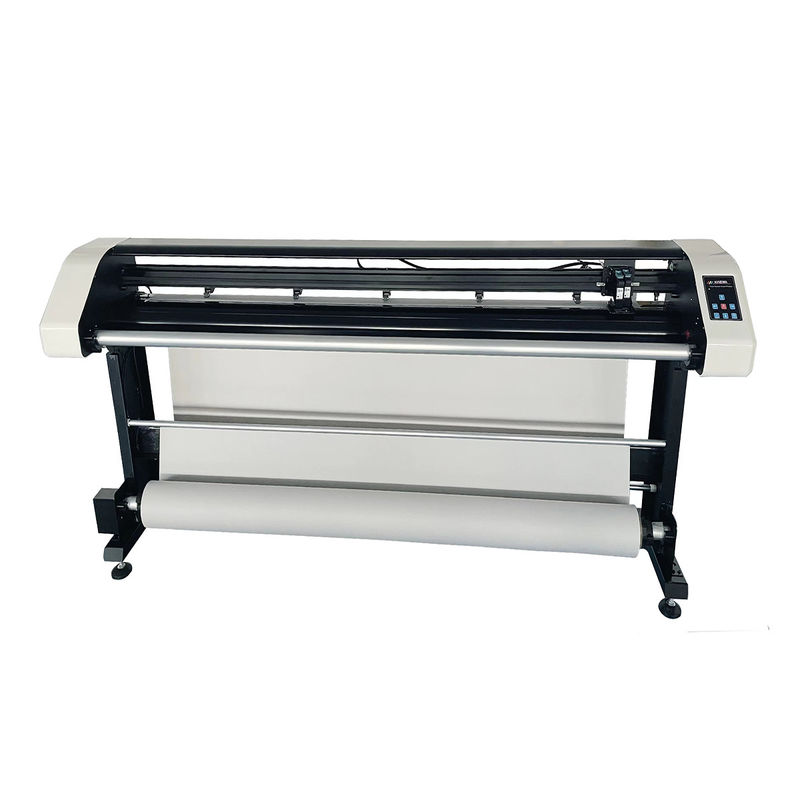

Automatic Grade High Precision Inkjet Fabric Cutting Plotter for Manufacturing Plant

製品詳細

起源の場所: 湖北,中国

ブランド名: Kaemi

支払いと送料の条件

価格: $950.00/sets 1-4 sets

パッケージの詳細: 特別に処理された木製ケースで 輸入・輸出に問題ありません

供給の能力: 200セット/セット/月

お問い合わせ
製品詳細
ハイライト:
タイプ:
インクジェットプリンター
プリント サイズ:
1200mm,1600mm,1900mm,2100mm ほら,これから
適用される産業:
衣服の店、製造工場、プリント ショップ
条件:
新しい
プレートの種類:
ロール・トゥ・ロールプリンター
使用する:
ペーパー プリンター
オートマティックグレード:
オートマティック
色及びページ:
単色
電圧:
220V
サイズ (L*W*H):
198*110*70cmから 270*110*70cm
体重:
100kg
保証:
1 年
インクタイプ:
速い乾燥したインク
主要 な 売り物:
高精度
販売形態:
新しい製品 2022
機械試験報告:
提供
ビデオ出勤検査:
提供
基本部品の保証:
2年
基本構成要素:
モーター,エンジン
製品名:
インクジェット印刷 インクジェット印刷機
印刷 材料:
ホワイトブック,クラフトなど
切断サイズ:
700mmから1950mm
紙のサイズ:
1300mmから2300mm
印刷ツール:
H801 大容量インクカートリッジ
インク カートリッジのタイプ:
継続的なインクキャトリッジ,交換する必要はありません,インクを再充填することができます
印刷の解像度:
150-600DPI メニューで設定できるオプション
電源電圧:
220V/50Hz
CAD ファイル形式:
HP-GL
モデル:
GM-L3
港:
上海/深セン/寧波
タイプ:
インクジェットプリンター
プリント サイズ:
1200mm,1600mm,1900mm,2100mm ほら,これから
適用される産業:
衣服の店、製造工場、プリント ショップ
条件:
新しい
プレートの種類:
ロール・トゥ・ロールプリンター
使用する:
ペーパー プリンター
オートマティックグレード:
オートマティック
色及びページ:
単色
電圧:
220V
サイズ (L*W*H):
198*110*70cmから 270*110*70cm
体重:
100kg
保証:
1 年
インクタイプ:
速い乾燥したインク
主要 な 売り物:
高精度
販売形態:
新しい製品 2022
機械試験報告:
提供
ビデオ出勤検査:
提供
基本部品の保証:
2年
基本構成要素:
モーター,エンジン
製品名:
インクジェット印刷 インクジェット印刷機
印刷 材料:
ホワイトブック,クラフトなど
切断サイズ:
700mmから1950mm
紙のサイズ:
1300mmから2300mm
印刷ツール:
H801 大容量インクカートリッジ
インク カートリッジのタイプ:
継続的なインクキャトリッジ,交換する必要はありません,インクを再充填することができます
印刷の解像度:
150-600DPI メニューで設定できるオプション
電源電圧:
220V/50Hz
CAD ファイル形式:
HP-GL
モデル:
GM-L3
港:
上海/深セン/寧波
製品の説明

printhead printer/plotter/ High Precision smooth line inkjet fabric Cutting Plotter

Product Description

Automatic Grade High Precision Inkjet Fabric Cutting Plotter for Manufacturing Plant 0

Main Features

1. High-speed Servo Control, Full Closed-loop Positioning (to Ensure Accurate Output of Various Unexpected Situations)

2. Independent Output Manager Supports File Background Automatic Queuing Printing

3. Using advanced SOPC technology

4. Support breakpoint resume, ensure reliable data transmission and printing

5. Automatic printing online

6. 2 Printing Heads/3 Printing Heads/4 Printing Heads Optional



Technical Parameters

Type

Double Spray

Three Spray

Four Spray

Product Model

B-165-2

B-185-2

B-205-2

B-160-3

B-180-3

B-200-3

B-155-4

B-175-4

B-195-4

Printing Width(cm)

165

185

205

160

180

200

155

175

195

Feeding Paper Width(cm)

170

190

210

170

190

210

170

190

210

Printing Speed

Two-way high speed 93 m2/h

Two-way high speed 131 m2/h

Two-way high speed 163 m2/h

Printing format

HPGL drawing language,compatible with domestic and foreign CAD software,special format can be customized

Print resolution

150-600DPI

Type of Nozzle

HP45A

Line quality

Clear,smooth,no seam,optional 1-8 lines

Nozzle Cleaning

Automatic cleaning before printing

Paper Loading

Front heightening device to support paper roll with diameter of 28cm

Paper Feeding

Hidden infrared precise paper feeding system,continuous 700 meters without deviation

Receiving and Delivering Paper

Unattended automatic paper receiving and feeding

Print Media

40-80g,ordinary roll printing paper;80-250g,single brown paper

Communication Interface

Network port,multiple computers can separately control printing

Power Supply Voltage

220V/50Hz

Button Panel

Press the keys operation,simple,convenient,durable

Machine Structure

Die standardized metal structure,high precision and long life

Output Center

1.support manual or automatic printing 2.optional ink-saving mode 3.support online printing



Product Show

Automatic Grade High Precision Inkjet Fabric Cutting Plotter for Manufacturing Plant 1

Automatic Grade High Precision Inkjet Fabric Cutting Plotter for Manufacturing Plant 2Automatic Grade High Precision Inkjet Fabric Cutting Plotter for Manufacturing Plant 3









 Automatic Grade High Precision Inkjet Fabric Cutting Plotter for Manufacturing Plant 4



Related Products
Company Information

Automatic Grade High Precision Inkjet Fabric Cutting Plotter for Manufacturing Plant 9

Since its establishment, GEMEI has developed a series of cutting machines for clothing, bags, shoes and hats, and obtained a number of software copyright and patent certificates. Based on the profound understanding of China’s garment, luggage and footwear industry, GM series of cutting machine combines the essence of Chinese and foreign technologies, closely combines the advantages of the world's advanced technology and Chinese manufacturing industry, adopts a novel design different from the domestic traditional cutting machine, and fully experiences the design principle of "good at core, simple in shape". After the first continuous drum cutter came into being in the middle part of China , we successively developed the sample cutter for the luggage industry and continuous cutting garment sample cutter.

"The competition of enterprises is the competition of talents." GEMEI firmly grasps the trend that the world manufacturing
industry is transferring to the middle part of the world, and has established a research and development team composed of doctors and senior engineers and other high-quality talents,and insists that "innovation" is the eternal power of the development of GEMEI.

FAQ

Automatic Grade High Precision Inkjet Fabric Cutting Plotter for Manufacturing Plant 101. Q: Are you a manufacturer?
A: Yes, we are specializing in the r&d production for template cutter/inkjet cutter/pen writing cutter/cnc digital fabric cutter/graph plotter in this field for 10 years.
2. Q: How do you pack these products?
A: Usually packed in wooden case and can pack according to export standard or your requirement.
3. Q: Is it customizable?
A: Yes, We have basic sizes commonly applied in the field and can customize according to your requirements.
4.Q: After-sales service
A: Yes, professional after-sales team and 24-hour technical support by phone, email or skype
5.Q: What is your lead time?
A: Spot goods usually take 2-4 days, and customization takes 5-7 days
