ホーム > 製品 > インクジェットプロータープリンター > 1.6m Width Vertical Garment Inkjet Cutting Plotter for Paper Printing Resolution

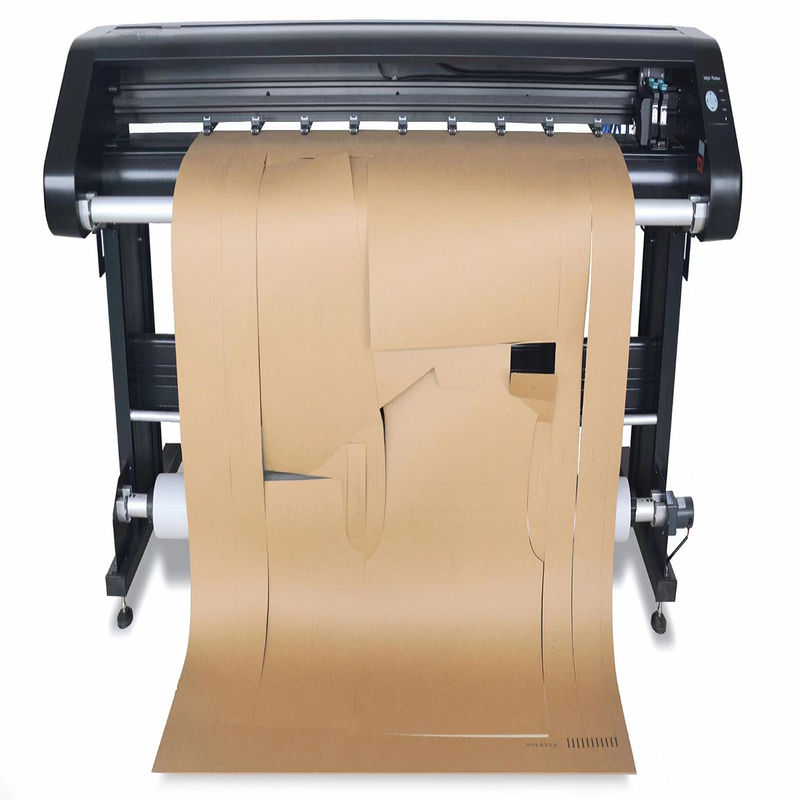

1.6m Width Vertical Garment Inkjet Cutting Plotter for Paper Printing Resolution

製品詳細

起源の場所: 中国

ブランド名: Kaemi

支払いと送料の条件

価格: $1,780.00/sets 1-4 sets

パッケージの詳細: 特別に処理された木製ケースで 輸入・輸出に問題ありません

供給の能力: 200セット/セット/月

お問い合わせ
製品詳細
ハイライト:

1.6m wide garment inkjet plotter

,

vertical cutting plotter for paper

,

inkjet plotter printer with high resolution

タイプ:
インクジェットプリンター
プリント サイズ:
1200mm,1600mm,1900mm,2100mm ほら,これから
適用される産業:
衣服の店、製造工場、プリント ショップ、広告会社
条件:
新しい
プレートの種類:
ロール・トゥ・ロールプリンター
使用する:
ペーパー プリンター
オートマティックグレード:
オートマティック
色及びページ:
単色
電圧:
220V
サイズ (L*W*H):
198*110*70cmから 270*110*70cm
体重:
100kg
保証:
1 年
インクタイプ:
速い乾燥したインク
主要 な 売り物:
高精度
販売形態:
新しい製品 2020
機械試験報告:
提供
ビデオ出勤検査:
提供
基本部品の保証:
2年
基本構成要素:
モーター,エンジン
製品名:
垂直インクジェット着物切断プロット
印刷 材料:
ホワイトブック,クラフトなど
切断サイズ:
1250mm から 2200mm
紙のサイズ:
1300mmから2300mm
印刷ツール:
H801 大容量インクカートリッジ
インク カートリッジのタイプ:
継続的なインクキャトリッジ,交換する必要はありません,インクを再充填することができます
印刷の解像度:
150-600DPI メニューで設定できるオプション
電源電圧:
220V/50Hz
CAD ファイル形式:
HP-GL
モデル:
GM-L3
港:
上海/深セン/寧波
タイプ:
インクジェットプリンター
プリント サイズ:
1200mm,1600mm,1900mm,2100mm ほら,これから
適用される産業:
衣服の店、製造工場、プリント ショップ、広告会社
条件:
新しい
プレートの種類:
ロール・トゥ・ロールプリンター
使用する:
ペーパー プリンター
オートマティックグレード:
オートマティック
色及びページ:
単色
電圧:
220V
サイズ (L*W*H):
198*110*70cmから 270*110*70cm
体重:
100kg
保証:
1 年
インクタイプ:
速い乾燥したインク
主要 な 売り物:
高精度
販売形態:
新しい製品 2020
機械試験報告:
提供
ビデオ出勤検査:
提供
基本部品の保証:
2年
基本構成要素:
モーター,エンジン
製品名:
垂直インクジェット着物切断プロット
印刷 材料:
ホワイトブック,クラフトなど
切断サイズ:
1250mm から 2200mm
紙のサイズ:
1300mmから2300mm
印刷ツール:
H801 大容量インクカートリッジ
インク カートリッジのタイプ:
継続的なインクキャトリッジ,交換する必要はありません,インクを再充填することができます
印刷の解像度:
150-600DPI メニューで設定できるオプション
電源電圧:
220V/50Hz
CAD ファイル形式:
HP-GL
モデル:
GM-L3
港:
上海/深セン/寧波
製品の説明



Product Description

1.6m Width Vertical Garment Inkjet Cutting Plotter for Paper Printing Resolution 0Main Features:
Exclusive Software Algorithm,Machines Print more Precisely,Lines are Clearer Without Gratings and Horse Disks,Greatly Lower Fault Rate
Independent Output Management Software,Guarantee The better Connect of Machine and Computer
Hidden Heads of Ink and Knife
If The Machine Stops Abnormally,The Position Will be Recorded Automatically
Online Automatic Printing in The Queue

Technical Parameters
Product Model:                                     GM125L3 GM170L3   GM190L3 GM220L3
Maximum Printing Width                                     125cm  170cm 190cm  220cm
Ink Type: 2 spray/4 spray HP universal ink cartridge HP45/6145A
Printing Density:  300-600D (optional ink-saving mode)
Printing Capacity:  200-230 square meters/hour (four-jet)
Line Quality:  Precise,smooth,seamless
Software Fompatibility:  HPGL(special format can be customized)
Paper Feeding:

Precise paper feeding technology,invisible digital coding induction

system

Paper Loading:  Front paper receiving and placing system
Paper Receiving Mode:

Automatic collecting or no-collecting printing to fast print a large

number of patterns and save paper loading time

Host Structure:

American all-metal high-rigidity wear-resisting structure to ensure the life of the machine is 5 times

higher than similar production

Intelligent Ink Car:

Automatic origin record,servo control,ink consumption monitoring,

no seams,

clear lines

Paper Requires:  General paper(30g-250g)
Input Voltage:  AC220/110V 60HZ power is not less than 400W
Communication Port: USB/interface  shared printing
Command Format:  HP-GL
Product Show

1.6m Width Vertical Garment Inkjet Cutting Plotter for Paper Printing Resolution 1

1.6m Width Vertical Garment Inkjet Cutting Plotter for Paper Printing Resolution 2







1.6m Width Vertical Garment Inkjet Cutting Plotter for Paper Printing Resolution 3



1.6m Width Vertical Garment Inkjet Cutting Plotter for Paper Printing Resolution 4

Related Products
Company Information

1.6m Width Vertical Garment Inkjet Cutting Plotter for Paper Printing Resolution 7

Since its establishment, GEMEI has developed a series of cutting machines for clothing, bags, shoes and hats, and obtained a number of software copyright and patent certificates. Based on the profound understanding of China’s garment, luggage and footwear industry, GM series of cutting machine combines the essence of Chinese and foreign technologies, closely combines the advantages of the world's advanced technology and Chinese manufacturing industry, adopts a novel design different from the domestic traditional cutting machine, and fully experiences the design principle of "good at core, simple in shape". After the first continuous drum cutter came into being in the middle part of China , we successively developed the sample cutter for the luggage industry and continuous cutting garment sample cutter.

"The competition of enterprises is the competition of talents." GEMEI firmly grasps the trend that the world manufacturing
industry is transferring to the middle part of the world, and has established a research and development team composed of doctors and senior engineers and other high-quality talents,and insists that "innovation" is the eternal power of the development of GEMEI.1.6m Width Vertical Garment Inkjet Cutting Plotter for Paper Printing Resolution 8

FAQ

1.6m Width Vertical Garment Inkjet Cutting Plotter for Paper Printing Resolution 91. Q: Are you a manufacturer?
A: Yes, we are specializing in the r&d production for template cutter/inkjet cutter/pen writing cutter/cnc digital fabric cutter/graph plotter in this field for 10 years.
2. Q: How do you pack these products?
A: Usually packed in wooden case and can pack according to export standard or your requirement.
3. Q: Is it customizable?
A: Yes, We have basic sizes commonly applied in the field and can customize according to your requirements.
4.Q: After-sales service
A: Yes, professional after-sales team and 24-hour technical support by phone, email or skype
5.Q: What is your lead time?
A: Spot goods usually take 2-4 days, and customization takes 5-7 days
