ホーム > 製品 > インクジェットプロータープリンター > 100KG Weight Vertical Cutter Plotter for Printing Resolution Optional and Settable

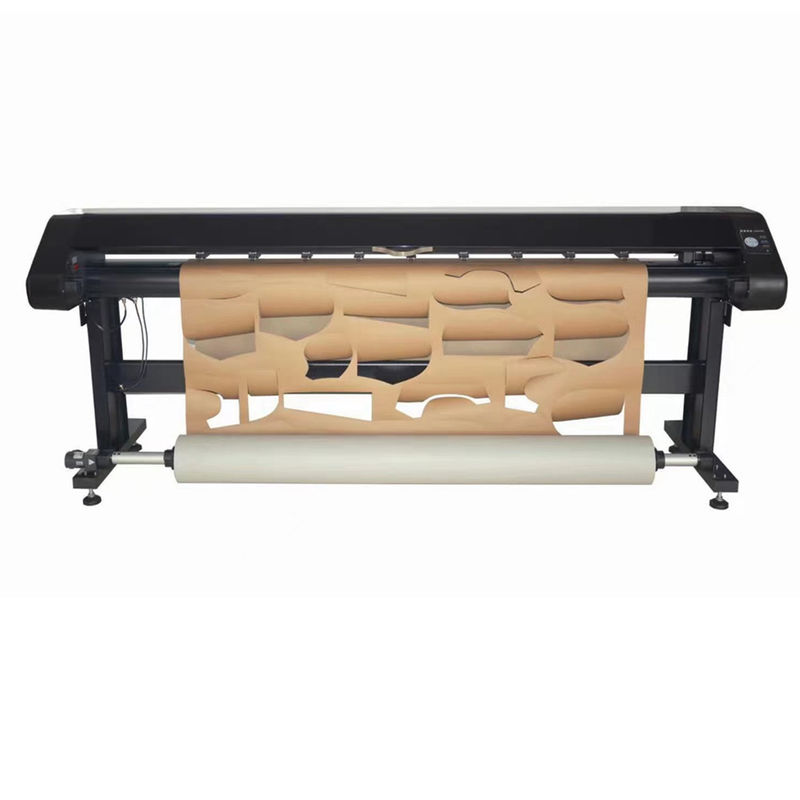

100KG Weight Vertical Cutter Plotter for Printing Resolution Optional and Settable

製品詳細

起源の場所: 湖北,中国

ブランド名: KAEMI or OEM

支払いと送料の条件

価格: $1,559.00/sets 1-4 sets

お問い合わせ
製品詳細
ハイライト:

100KG weight vertical cutter plotter

,

inkjet plotter printer with settable resolution

,

high-capacity vertical cutter for printing

条件:
新しい
適用される産業:
衣料品店,建材店,製造工場,機械修理店,家庭用,小売店,印刷店,建設業,その他,その他すべてのファイルは切断切削または印刷を必要とします.
体重 (kg):
100
展示室の場所:
トルコ,ベトナム,バングラデシュ,カンボジア
ビデオ出勤検査:
提供
機械試験報告:
提供
販売形態:
普通の製品
基本部品の保証:
1 年
基本構成要素:
モーター,マザーボード,ドライバー
保証:
1年,全マシンに1年保証
製品名:
120~180cm 2対1 インクジェットカットパー 縦切断パー
印刷 材料:
ホワイトブック,クラフトなど
切断サイズ:
110~170cm 幅
紙のサイズ:
120~180cm 幅
印刷ツール:
通常のHP45インクカートリッジ
印刷幅:
120~180cm 幅 オプション
印刷の解像度:
150-600DPI メニューで設定できるオプション
電源電圧:
220V/50Hz
CAD ファイル形式:
HP-GL,PLT,DXFなど
切刃:
プロフェッショナル・ウォルグメン切断刃
条件:
新しい
適用される産業:
衣料品店,建材店,製造工場,機械修理店,家庭用,小売店,印刷店,建設業,その他,その他すべてのファイルは切断切削または印刷を必要とします.
体重 (kg):
100
展示室の場所:
トルコ,ベトナム,バングラデシュ,カンボジア
ビデオ出勤検査:
提供
機械試験報告:
提供
販売形態:
普通の製品
基本部品の保証:
1 年
基本構成要素:
モーター,マザーボード,ドライバー
保証:
1年,全マシンに1年保証
製品名:
120~180cm 2対1 インクジェットカットパー 縦切断パー
印刷 材料:
ホワイトブック,クラフトなど
切断サイズ:
110~170cm 幅
紙のサイズ:
120~180cm 幅
印刷ツール:
通常のHP45インクカートリッジ
印刷幅:
120~180cm 幅 オプション
印刷の解像度:
150-600DPI メニューで設定できるオプション
電源電圧:
220V/50Hz
CAD ファイル形式:
HP-GL,PLT,DXFなど
切刃:
プロフェッショナル・ウォルグメン切断刃
製品の説明

Hot Selling 120 to 180cm Width 2-in-1 Inkjet Cutter Plotter Vertical Cutter Plotter

100KG Weight Vertical Cutter Plotter for Printing Resolution Optional and Settable 0

Product Description

100KG Weight Vertical Cutter Plotter for Printing Resolution Optional and Settable 1Main Features:
Exclusive Software Algorithm,Machines Print more Precisely,Lines are Clearer Without Gratings and Horse Disks,Greatly Lower Fault Rate
Independent Output Management Software,Guarantee The better Connect of Machine and Computer
Hidden Heads of Ink and Knife
If The Machine Stops Abnormally,The Position Will be Recorded Automatically
Online Automatic Printing in The Queue

Technical Parameters
Product Model:                                     GM1200PQ GM1600PQ  GM1800PQ GM2000PQ
Maximum Printing Width                                     1200mm  1600mm 1800mm 2000mm
Maximum Cutting  Width 1100mm 1500mm 1700mm 1900mm
Ink Type: Dual Head 2 Universal ink cartridge HP45/6145A
Printing Density:  300-600D (optional ink-saving mode)
Printing Capacity:  200-230 square meters/hour (four-jet)
Line Quality:  Precise,smooth,seamless
Software Fompatibility:  HPGL, PLT, DXF, etc(special format can be customized)
Paper Feeding:

Precise paper feeding technology,invisible digital coding induction

system

Paper Loading:  Front paper receiving and placing system
Paper Receiving Mode:

Automatic collecting or no-collecting printing to fast print a large

number of patterns and save paper loading time

Host Structure:

American all-metal high-rigidity wear-resisting structure to ensure the life of the machine is 5 times

higher than similar production

Intelligent Ink Car:

Automatic origin record,servo control,ink consumption monitoring,

no seams,

clear lines

Paper Requires:  General paper(30g-250g)
Input Voltage:  AC220/110V 60HZ Power 400W; 110V-120V Power Optional
Communication Port: USB/interface  shared printing
Command Format:  HP-GL, PLT, DXF, etc
Product Show

100KG Weight Vertical Cutter Plotter for Printing Resolution Optional and Settable 2

100KG Weight Vertical Cutter Plotter for Printing Resolution Optional and Settable 3100KG Weight Vertical Cutter Plotter for Printing Resolution Optional and Settable 4







100KG Weight Vertical Cutter Plotter for Printing Resolution Optional and Settable 5



100KG Weight Vertical Cutter Plotter for Printing Resolution Optional and Settable 6

Packaging & Shipping

100KG Weight Vertical Cutter Plotter for Printing Resolution Optional and Settable 7

Related Products
Company Information

100KG Weight Vertical Cutter Plotter for Printing Resolution Optional and Settable 10

Since its establishment, GEMEI has developed a series of cutting machines for clothing, bags, shoes and hats, and obtained a number of software copyright and patent certificates. Based on the profound understanding of China’s garment, luggage and footwear industry, GM series of cutting machine combines the essence of Chinese and foreign technologies, closely combines the advantages of the world's advanced technology and Chinese manufacturing industry, adopts a novel design different from the domestic traditional cutting machine, and fully experiences the design principle of "good at core, simple in shape". After the first continuous drum cutter came into being in the middle part of China , we successively developed the sample cutter for the luggage industry and continuous cutting garment sample cutter.

"The competition of enterprises is the competition of talents." GEMEI firmly grasps the trend that the world manufacturing
industry is transferring to the middle part of the world, and has established a research and development team composed of doctors and senior engineers and other high-quality talents,and insists that "innovation" is the eternal power of the development of GEMEI.

100KG Weight Vertical Cutter Plotter for Printing Resolution Optional and Settable 11

FAQ

100KG Weight Vertical Cutter Plotter for Printing Resolution Optional and Settable 121. Q: Are you a manufacturer?
A: Yes, we are specializing in the r&d production for template cutter/inkjet cutter/pen writing cutter/cnc digital fabric cutter/graph plotter in this field for 10 years.
2. Q: How do you pack these products?
A: Usually packed in wooden case and can pack according to export standard or your requirement.
3. Q: Is it customizable?
A: Yes, We have basic sizes commonly applied in the field and can customize according to your requirements.
4.Q: After-sales service
A: Yes, professional after-sales team and 24-hour technical support by phone, email or skype
5.Q: What is your lead time?
A: Spot goods usually take 2-4 days, and customization takes 5-7 days
