製品詳細
起源の場所: 湖北,中国
ブランド名: KAEMI or GM
支払いと送料の条件
価格: $4,115.00/sets 1-2 sets
条件: |
新しい |
適用される産業: |
ホテル,衣装店,製造工場,機械修理店,家庭用,小売,印刷店,広告会社,靴/帽子/バッグ/家具/車内装製品 |
体重 (kg): |
400 |
展示室の場所: |
ベトナム |
ビデオ出勤検査: |
提供 |
機械試験報告: |
提供 |
販売形態: |
新しい製品 2020 |
基本部品の保証: |
2年 |
基本構成要素: |
エンジン,モーター,ドライバー,マザーボード |
保証: |
1 年,機械 全体 の ため |
製品名: |

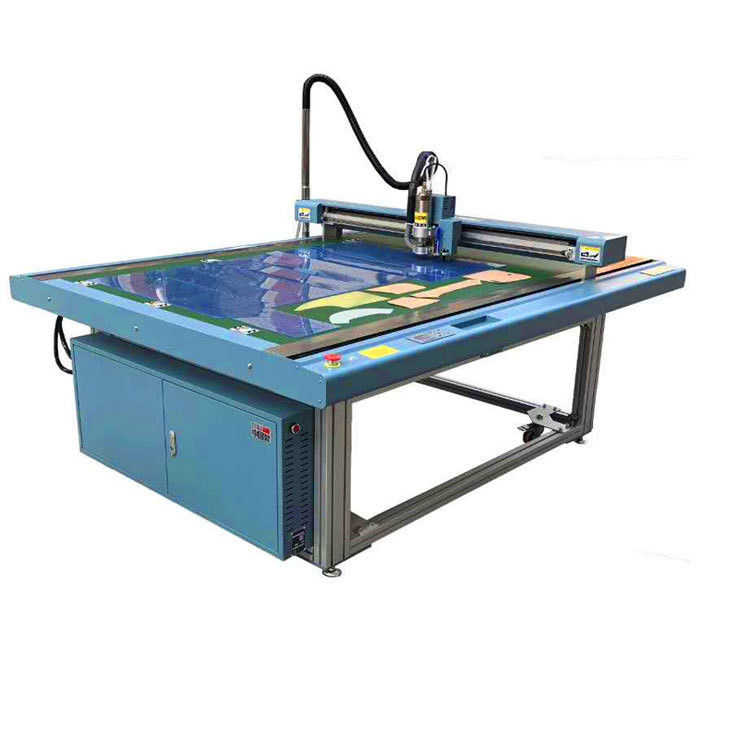

GM1509M5DU 着物 衣類 機械 切断 機械 切断 機械 |
切断機の枠とケース: |
青いフレーム+銀色のケース |
機械の材料: |
アルミ製のカウンタートップ |
切断材料: |
PVC,PP,POM,アクリル,PET,クラフトなど |
切る道具: |
磨き機,彫刻機,掘削機,ペン |
切断範囲: |
1500*900mm |
切る厚さ: |
≤1.5mm〜6.0mm |
切断速度: |
500~1800mm/s |
切断機の大きさ: |
1900*1450*1100mm |
適用できる分野や産業: |
衣類,バッグ,ハンドバッグ,家具,車飾り,紙箱 |
条件: |
新しい |
適用される産業: |
ホテル,衣装店,製造工場,機械修理店,家庭用,小売,印刷店,広告会社,靴/帽子/バッグ/家具/車内装製品 |
体重 (kg): |
400 |
展示室の場所: |
ベトナム |
ビデオ出勤検査: |
提供 |
機械試験報告: |
提供 |
販売形態: |
新しい製品 2020 |
基本部品の保証: |
2年 |
基本構成要素: |
エンジン,モーター,ドライバー,マザーボード |
保証: |
1 年,機械 全体 の ため |
製品名: |
GM1509M5DU 着物 衣類 機械 切断 機械 切断 機械 |
切断機の枠とケース: |
青いフレーム+銀色のケース |
機械の材料: |
アルミ製のカウンタートップ |
切断材料: |
PVC,PP,POM,アクリル,PET,クラフトなど |
切る道具: |
磨き機,彫刻機,掘削機,ペン |
切断範囲: |
1500*900mm |
切る厚さ: |
≤1.5mm〜6.0mm |
切断速度: |
500~1800mm/s |
切断機の大きさ: |
1900*1450*1100mm |
適用できる分野や産業: |
衣類,バッグ,ハンドバッグ,家具,車飾り,紙箱 |
Main Features:
1. All-aluminiumn Profile Fuselage; Compact and Reasonable; More Stable
2.Global Initiative: Smart Accidental Power Off/Power Cut Data Recovery System(Avoid Cutting Materials Wasting)
3.One Key Intelligent Fixture+Multi-point Zone Adsorption System
4.Multi-layer at One-time Cutting
5.Integrated Floating Pressure Foot and Vacuum Cleaning Technology
6.Flexible Modification System for Cutting Starting Points and Cutting Sequence
7.Independent Templates Editing and Designing System
Model | GM-1509M5 | GM-1512M5 | GM1812M5 |
Cutting Window(Fabric Scope) | 1500*900mm | 1500*1200mm | 1800*1200mm |
Overall Dimension(mm) | 2000*1570*1100 | 2000*1770*1100 | 2300*1770*1100 |
Product Features | Compatible with various CAD softwares;Design while the machine is cutting | ||
Cutting Speed | 500-1800mm/s | ||
Cutting Thickness | ≤1.5mm-6.0mm | ||
Cutting Materials | PVC, PP,POM,Acrylic, PET, Kraft, etc | ||
Processing Methods | Mill, Cut, Drill, Plot | ||
Cut Tools | Mill-cutter, Graver, Driller, Pen | ||
Repeatability Precision | ≤0.01mm | ||
Software Resolution | 0.025mm/0.01mm/0.1mm(Optional) | ||
Communication Port | USB/RJ45 Ethernet | ||
Buffer Memory Size | 1M/8M/32M(Can butter more than 1 page) | ||
File Formats | DXF/HPGL/GPGL/PLT Formats Compatible | ||
Control Panel | 9 Keys and LED Display | ||
Driver System | Moons Motor driver; High-accuracy Lead Rail, Double Lead Rail on crossbeam | ||
Supply Voltage | AC 220V/110V±10%, 50Hz/3.5KW | ||
Fuse Value | 30A/35A | ||
Working Environment | -30~55℃ or -22~131℉ | ||
Fasten | Vacuum/Clamping | ||
Mill Motor | 800W/1500W, Water-cooling/Air-cooling, 5000~240000 RPM Inverter | ||
Waste Elimination | 220V/1.4KW, Industrial 15L Vacuum Cleaner |
Since its establishment, GEMEI has developed a series of cutting machines for clothing, bags, shoes and hats, and obtained a number of software copyright and patent certificates. Based on the profound understanding of China’s garment, luggage and footwear industry, GM series of cutting machine combines the essence of Chinese and foreign technologies, closely combines the advantages of the world's advanced technology and Chinese manufacturing industry, adopts a novel design different from the domestic traditional cutting machine, and fully experiences the design principle of "good at core, simple in shape". After the first continuous drum cutter came into being in the middle part of China , we successively developed the sample cutter for the luggage industry and continuous cutting garment sample cutter.
"The competition of enterprises is the competition of talents." GEMEI firmly grasps the trend that the world manufacturing
industry is transferring to the middle part of the world, and has established a research and development team composed of doctors and senior engineers and other high-quality talents,and insists that "innovation" is the eternal power of the development of GEMEI.
1. Q: Are you a manufacturer?
A: Yes, we are specializing in the r&d production for template cutter/inkjet cutter/pen writing cutter/cnc digital fabric cutter/graph plotter in this field for 10 years.
2. Q: How do you pack these products?
A: Usually packed in wooden case and can pack according to export standard or your requirement.
3. Q: Is it customizable?
A: Yes, We have basic sizes commonly applied in the field and can customize according to your requirements.
4.Q: After-sales service
A: Yes, professional after-sales team and 24-hour technical support by phone, email or skype
5.Q: What is your lead time?
A: Spot goods usually take 2-4 days, and customization takes 5-7 days
