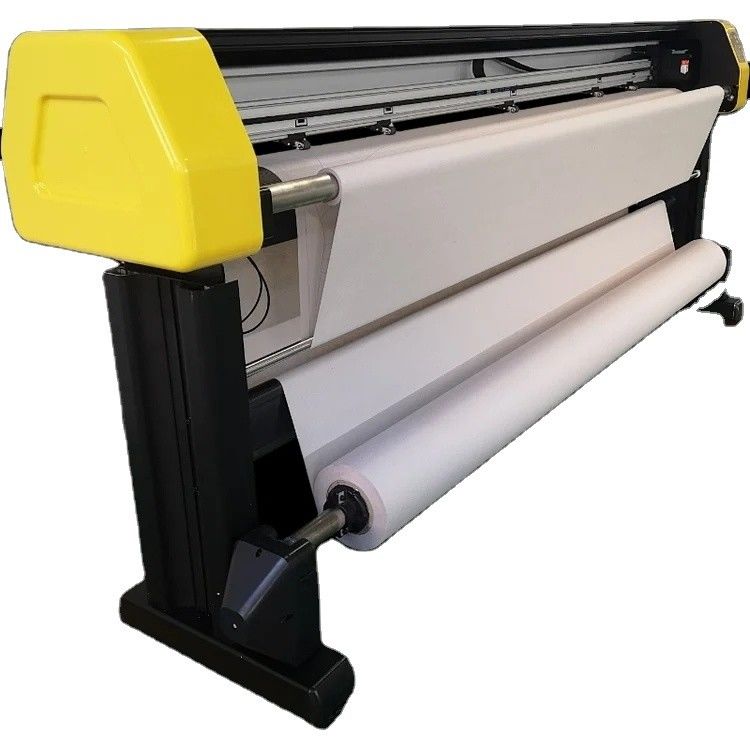

Advanced 600DPI Resolution Garment Paper Pattern Printing Plotter with 2 Head 4 Head

製品詳細

起源の場所: 湖北,中国

ブランド名: KAEMI or OEM

支払いと送料の条件

価格: $1,798.00/sets 1-4 sets

お問い合わせ
製品詳細
ハイライト:
条件:
新しい
適用される産業:
服装店,建材店,製造工場,機械修理店,家庭用,小売,印刷店,建設業,その他,広告会社
体重 (kg):
100
展示室の場所:
トルコ バングラデシュ カンボジア
ビデオ出勤検査:
提供
機械試験報告:
提供
販売形態:
普通の製品
基本部品の保証:
1 年
基本構成要素:
モーター,マザーボード,ドライバー
保証:
1年,全マシンに1年保証
製品名:
CAD インクジェット紙 パターンプリントプロット
印刷 材料:
ホワイトブック,クラフトなど
切断サイズ:
1650mmから2050mm
紙のサイズ:
1700mmから2100mm
印刷ツール:
ユニバーサルHP45インクボックスまたはカートリッジ
インク カートリッジのタイプ:
HP45 インクボックスまたはカートリッジ 2から4つの印刷頭
印刷の解像度:
150-600DPI メニューで設定できるオプション
電源電圧:
220V/50Hz
CAD ファイル形式:
HP-GL
条件:
新しい
適用される産業:
服装店,建材店,製造工場,機械修理店,家庭用,小売,印刷店,建設業,その他,広告会社
体重 (kg):
100
展示室の場所:
トルコ バングラデシュ カンボジア
ビデオ出勤検査:
提供
機械試験報告:
提供
販売形態:
普通の製品
基本部品の保証:
1 年
基本構成要素:
モーター,マザーボード,ドライバー
保証:
1年,全マシンに1年保証
製品名:
CAD インクジェット紙 パターンプリントプロット
印刷 材料:
ホワイトブック,クラフトなど
切断サイズ:
1650mmから2050mm
紙のサイズ:
1700mmから2100mm
印刷ツール:
ユニバーサルHP45インクボックスまたはカートリッジ
インク カートリッジのタイプ:
HP45 インクボックスまたはカートリッジ 2から4つの印刷頭
印刷の解像度:
150-600DPI メニューで設定できるオプション
電源電圧:
220V/50Hz
CAD ファイル形式:
HP-GL
製品の説明

600DPI Resolution Practical Garment Paper Pattern Printing Plotter 2 Head 4 Head Graph Contour Inkjet PlotterAdvanced 600DPI Resolution Garment Paper Pattern Printing Plotter with 2 Head 4 Head 0

Product Description

Advanced 600DPI Resolution Garment Paper Pattern Printing Plotter with 2 Head 4 Head 1Main Features:
High-speed Servo Control, Full Closed-loop Positioning (to Ensure Accurate Output of Various Unexpected Situations)
Independent Output Manager Supports File Background Automatic Queuing Printing
Using advanced SOPC technology
Support breakpoint resume, ensure reliable data transmission and printing
Automatic printing online
2 Printing Heads/3 Printing Heads/4 Printing Heads Optional

Technical Parameters
Type                                                      Double Spray Three Spray  Four Spray
Product Model                  B-165-2/B-185-2/B-205-2  B-160-3/B-180-3/B-200-3 B-155-4/B-175-4/B-195-4
Printing Width(cm)                                                       165/185/205 160/180/200 155/175/195
Feeding Paper Width(cm)                                      170/190/210      170/190/210   170/190/210
Printing Speed: Two-way high speed 93 m2/h; Two-way high speed 131 m2/h;Two-way high speed 163 m2/h
Printing format: HPGL drawing language,compatible with domestic and foreign CAD software,special format can be customized
Print resolution: 150-600DPI
Type of Nozzle: HP45A
Line quality: Clear,smooth,no seam,optional 1-8 lines
Nozzle Cleaning: Automatic cleaning before printing
Paper Loading: Front heightening device to support paper roll with diameter of 28cm
Paper Feeding: Hidden infrared precise paper feeding system,continuous 700 meters without deviation
Receiving and Delivering Paper: Unattended automatic paper receiving and feeding
Print Media: 40-80g,ordinary roll printing paper;80-250g,single brown paper
Communication Interface: Network port,multiple computers can separately control printing
Power Supply Voltage: 220V/50Hz
Button Panel: Press the keys operation,simple,convenient,durable
Machine Structure: Die standardized metal structure,high precision and long life
Output Center: 1.support manual or automatic printing 2.optional ink-saving mode 3.support online printing.
Product Show

Advanced 600DPI Resolution Garment Paper Pattern Printing Plotter with 2 Head 4 Head 2

Advanced 600DPI Resolution Garment Paper Pattern Printing Plotter with 2 Head 4 Head 3Advanced 600DPI Resolution Garment Paper Pattern Printing Plotter with 2 Head 4 Head 4



Advanced 600DPI Resolution Garment Paper Pattern Printing Plotter with 2 Head 4 Head 5Advanced 600DPI Resolution Garment Paper Pattern Printing Plotter with 2 Head 4 Head 6Advanced 600DPI Resolution Garment Paper Pattern Printing Plotter with 2 Head 4 Head 7

Packaging & Shipping

Advanced 600DPI Resolution Garment Paper Pattern Printing Plotter with 2 Head 4 Head 8

Related Products
Company Information

Advanced 600DPI Resolution Garment Paper Pattern Printing Plotter with 2 Head 4 Head 11

Since its establishment, GEMEI has developed a series of cutting machines for clothing, bags, shoes and hats, and obtained a number of software copyright and patent certificates. Based on the profound understanding of China’s garment, luggage and footwear industry, GM series of cutting machine combines the essence of Chinese and foreign technologies, closely combines the advantages of the world's advanced technology and Chinese manufacturing industry, adopts a novel design different from the domestic traditional cutting machine, and fully experiences the design principle of "good at core, simple in shape". After the first continuous drum cutter came into being in the middle part of China , we successively developed the sample cutter for the luggage industry and continuous cutting garment sample cutter.

"The competition of enterprises is the competition of talents." GEMEI firmly grasps the trend that the world manufacturing
industry is transferring to the middle part of the world, and has established a research and development team composed of doctors and senior engineers and other high-quality talents,and insists that "innovation" is the eternal power of the development of GEMEI.

Advanced 600DPI Resolution Garment Paper Pattern Printing Plotter with 2 Head 4 Head 12

FAQ

Advanced 600DPI Resolution Garment Paper Pattern Printing Plotter with 2 Head 4 Head 131. Q: Are you a manufacturer?
A: Yes, we are specializing in the r&d production for template cutter/inkjet cutter/pen writing cutter/cnc digital fabric cutter/graph plotter in this field for 10 years.
2. Q: How do you pack these products?
A: Usually packed in wooden case and can pack according to export standard or your requirement.
3. Q: Is it customizable?
A: Yes, We have basic sizes commonly applied in the field and can customize according to your requirements.
4.Q: After-sales service
A: Yes, professional after-sales team and 24-hour technical support by phone, email or skype
5.Q: What is your lead time?
A: Spot goods usually take 2-4 days, and customization takes 5-7 days
