ホーム > 製品 > インクジェットプロータープリンター > Continuous Inkjet Paper Pattern CAD Inkjet Plotter with and Settable Printing Resolution

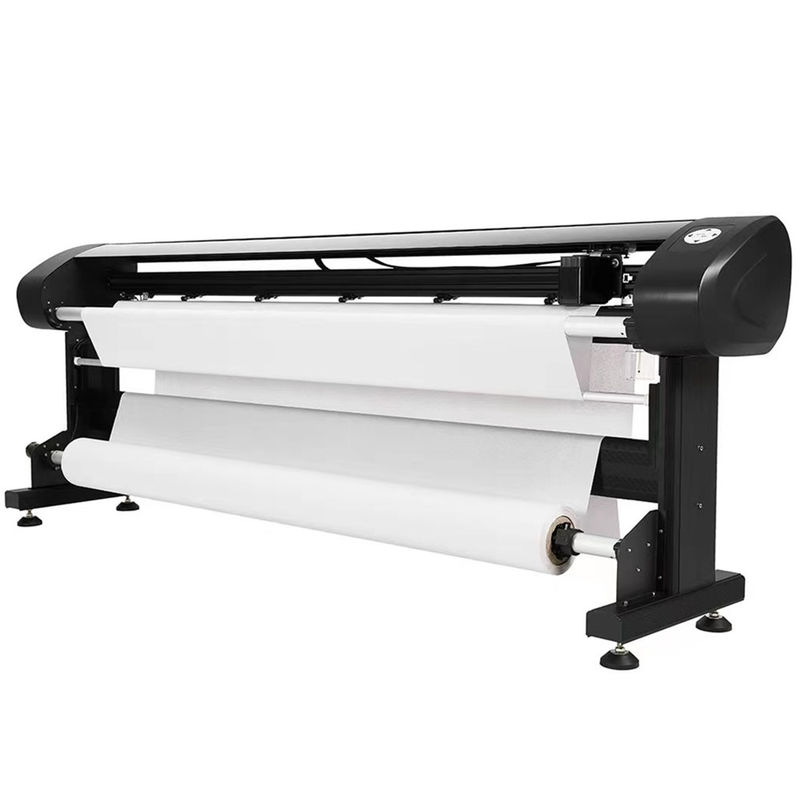

Continuous Inkjet Paper Pattern CAD Inkjet Plotter with and Settable Printing Resolution

製品詳細

起源の場所: 湖北,中国

ブランド名: KAEMI or OEM

支払いと送料の条件

価格: $1,245.00/sets 1-4 sets

お問い合わせ
製品詳細
ハイライト:
条件:
新しい
適用される産業:
服装店,建材店,製造工場,機械修理店,家庭用,小売店,印刷店,建設業,その他,広告会社,他のすべてのファイルはカットカットまたは印刷が必要です
体重 (kg):
100
展示室の場所:
トルコ,ベトナム,バングラデシュ
ビデオ出勤検査:
提供
機械試験報告:
提供
販売形態:
普通の製品
基本部品の保証:
1 年
基本構成要素:
モーター カンボジア
保証:
1年,全マシンに1年保証
製品名:
高価なパフォーマンスアパレル CAD紙パターンプロット インクジェットプロット
印刷 材料:
ホワイトブック,クラフトなど
切断サイズ:
1650mmから2050mm
紙のサイズ:
1700mmから2100mm
印刷ツール:
ユニバーサルHP45インクボックスまたはカートリッジ
インク カートリッジのタイプ:
HP45 インクボックスまたはカートリッジ 2から4つの印刷頭
印刷の解像度:
150-600DPI メニューで設定できるオプション
電源電圧:
220V/50Hz
CAD ファイル形式:
PLT または DXF
条件:
新しい
適用される産業:
服装店,建材店,製造工場,機械修理店,家庭用,小売店,印刷店,建設業,その他,広告会社,他のすべてのファイルはカットカットまたは印刷が必要です
体重 (kg):
100
展示室の場所:
トルコ,ベトナム,バングラデシュ
ビデオ出勤検査:
提供
機械試験報告:
提供
販売形態:
普通の製品
基本部品の保証:
1 年
基本構成要素:
モーター カンボジア
保証:
1年,全マシンに1年保証
製品名:
高価なパフォーマンスアパレル CAD紙パターンプロット インクジェットプロット
印刷 材料:
ホワイトブック,クラフトなど
切断サイズ:
1650mmから2050mm
紙のサイズ:
1700mmから2100mm
印刷ツール:
ユニバーサルHP45インクボックスまたはカートリッジ
インク カートリッジのタイプ:
HP45 インクボックスまたはカートリッジ 2から4つの印刷頭
印刷の解像度:
150-600DPI メニューで設定できるオプション
電源電圧:
220V/50Hz
CAD ファイル形式:
PLT または DXF
製品の説明

Good Price Continuous Inkjet Paper Pattern CAD Inkjet Plotter 190cm to 250cm Printing WidthContinuous Inkjet Paper Pattern CAD Inkjet Plotter with and Settable Printing Resolution 0

Product Description

Continuous Inkjet Paper Pattern CAD Inkjet Plotter with and Settable Printing Resolution 1Main Features:
High-speed Servo Control, Full Closed-loop Positioning (to Ensure Accurate Output of Various Unexpected Situations)
Independent Output Manager Supports File Background Automatic Queuing Printing
Using advanced SOPC technology
Support breakpoint resume, ensure reliable data transmission and printing
Two Directions High Speed Printing
Super EPSON Ink Box, Big Capacity Continuous Ink Supply. Easier Operation to add the Ink.
No need to replace the Ink Box, More Environmental Friendly and More Economic.



Technical Parameters
Type: Big Capacity EP20L Ink Box--Continuous Ink Supply, No Ink Box Replacement
Product Model                                            EP20-19  EP20-21  EP20-23   EP20-25
Printing Width(cm)              190 210 230 250
Feeding Paper Width(cm)                   200 220 240 260
Printing Speed: Two-way high speed 120 m2/h
Printing format: HPGL drawing language,compatible with domestic and foreign CAD software,special format can be customized
Print resolution: 150-600DPI
Type of Nozzle: EP20L
Line quality: Clear,smooth,no seam,optional 1-8 lines
Nozzle Cleaning: Automatic cleaning before printing
Paper Loading: Front heightening device to support paper roll with diameter of 28cm
Paper Feeding: Hidden infrared precise paper feeding system,continuous 700 meters without deviation
Receiving and Delivering Paper: Unattended automatic paper receiving and feeding
Print Media: 40-80g,ordinary roll printing paper; 80-250g,single brown paper
Communication Interface: Network port,multiple computers can separately control printing
Power Supply Voltage: 220V/50Hz
Button Panel: Press the keys operation,simple,convenient,durable
Machine Structure: Die standardized metal structure,high precision and long life
Output Center: 1.support manual or automatic printing 2.optional ink-saving mode 3.support online printing
File Format: HP-GL
Working Temperature: 10~35℃ or 50~95℉; Humidity: 15%--85% RH(With no Condentation)
Product Show

Continuous Inkjet Paper Pattern CAD Inkjet Plotter with and Settable Printing Resolution 2

Continuous Inkjet Paper Pattern CAD Inkjet Plotter with and Settable Printing Resolution 3



Continuous Inkjet Paper Pattern CAD Inkjet Plotter with and Settable Printing Resolution 4



Continuous Inkjet Paper Pattern CAD Inkjet Plotter with and Settable Printing Resolution 5



Continuous Inkjet Paper Pattern CAD Inkjet Plotter with and Settable Printing Resolution 6

Packaging & Shipping

Continuous Inkjet Paper Pattern CAD Inkjet Plotter with and Settable Printing Resolution 7

Related Products
Company Information

Continuous Inkjet Paper Pattern CAD Inkjet Plotter with and Settable Printing Resolution 10

Since its establishment, GEMEI has developed a series of cutting machines for clothing, bags, shoes and hats, and obtained a number of software copyright and patent certificates. Based on the profound understanding of China’s garment, luggage and footwear industry, GM series of cutting machine combines the essence of Chinese and foreign technologies, closely combines the advantages of the world's advanced technology and Chinese manufacturing industry, adopts a novel design different from the domestic traditional cutting machine, and fully experiences the design principle of "good at core, simple in shape". After the first continuous drum cutter came into being in the middle part of China , we successively developed the sample cutter for the luggage industry and continuous cutting garment sample cutter.

"The competition of enterprises is the competition of talents." GEMEI firmly grasps the trend that the world manufacturing
industry is transferring to the middle part of the world, and has established a research and development team composed of doctors and senior engineers and other high-quality talents,and insists that "innovation" is the eternal power of the development of GEMEI.

Continuous Inkjet Paper Pattern CAD Inkjet Plotter with and Settable Printing Resolution 11

FAQ

Continuous Inkjet Paper Pattern CAD Inkjet Plotter with and Settable Printing Resolution 121. Q: Are you a manufacturer?
A: Yes, we are specializing in the r&d production for template cutter/inkjet cutter/pen writing cutter/cnc digital fabric cutter/graph plotter in this field for 10 years.
2. Q: How do you pack these products?
A: Usually packed in wooden case and can pack according to export standard or your requirement.
3. Q: Is it customizable?
A: Yes, We have basic sizes commonly applied in the field and can customize according to your requirements.
4.Q: After-sales service
A: Yes, professional after-sales team and 24-hour technical support by phone, email or skype
5.Q: What is your lead time?
A: Spot goods usually take 2-4 days, and customization takes 5-7 days
